Colorful Automatic Retractable Safety Cable Lock Out with 1.8m Rope
Features:
ZC-L33 Automatic Telescopic Cable Lockout
1. With automatic rewinding function, after press the inside button, the extra cable will br rewinded automatically tighten.
2. Easy to use and carry, sturdy and durable.
3. Impact resistance, abrasion resistance, heat resistance, low temperature resistance.
4. Can be used in the maximum temperature 80 degree and the minimum temperature -35 degree special enviroment.
Product Details:
1. Matrerial
Automatic retractable cable lockout is made of polycarbonate Plastic (PC),impact resistance,abrasive resistance, heat resistance,low temperature resistance ,can withstand the temperature of -35°C to85°C.
2. Function
Automatic retraction ,press the winding switch button,the cable can automatic retract and hidden in the lockout ;maneuverable,portable ,durable.
3. Parameter
Dimension: 110mm*110mm*40mm
Cable Diameter: 2.0mm
Cable Length: 1.8m
Socket: 7*4.5mm
Padlock Shackle Diameter: ≤7mm
Padlock Quantity: 2PCS

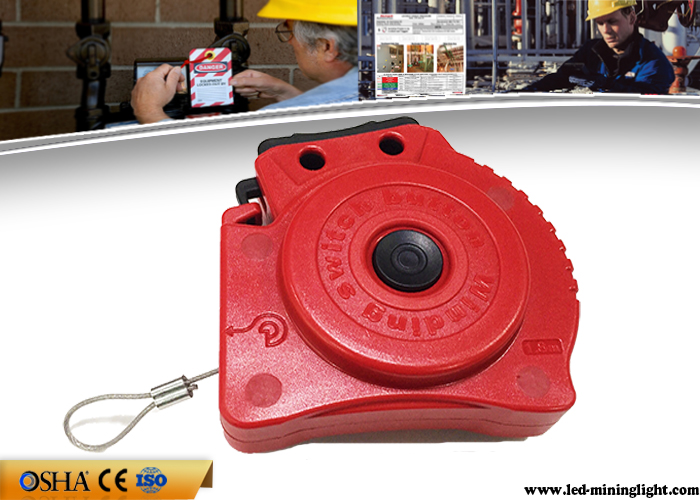

4. Cable lockout Image
Related Cable Lockout:
| Model No | Details |
| ZC-L01 | Multipurpose Cable Lockout ,2.4m, 1/8'' |
| ZC-L11 | Adjustable Cable Lockout with 1.8m 6mm dia steel cables |
| ZC-L12 | Adjustable Cable Lockout with 1.8m 3mm dia steel cables |
| ZC-L21 | Economic Cable Lockout |
| ZC-L41 | Wheel type cable lockout, assebled without tools |
| ZC-L33 | Size: 110*110*40cm, cable thickness 2mm, length 1.8m. Available for padlock shackle maximum diameter 7mm, cab be locked out by 2 pieces padlocks. |
How to Use this cable lockout:
1. Press the button to open, cable length can be adjusted based on needs.
2. Press the side button, the cable will rewind automatically.
3. Release the side button, the cable rewinding will stop. Press the top button to close thi scable lockout.
Application:
1. Land Drilling
2. Marine Oil
3. Chemical Refining
4. Industrial Manufacturing
5. Power Transmission and Distribution.
Our Cable Lockout Tagout Safety:
Our range of cable lockouts are ideal devices for securing most valves,isolators and industral machines.
Manufactured from an impact copolymer polypropylene with stainless steel internal parts and PVC coated steel cable,accepts 4-8Padlocks for multiple lock applications.
Shipping Way :
by air, by express or by sea are all available.
Payment method:
T/T. WU, L/C, Paypal, GM
Appearance Design:
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour.
